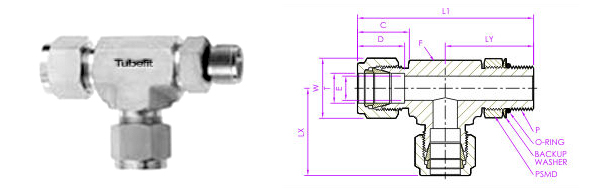

| Positionable Male Run Tee |
| |
| Fractional Tube X Sae-ms Straight (M) |
| |
 |
| |
| Tubefit part no. |
Equivalent Part no. Type 1 |
Equivalent part no Type 2 |
LX |
ODT-ØT(INCHES) |
Ø E |
BODY HEX F |
C |
SAE/MS MALE PIPE SIZE P |
L |
D |
NUT HEX W |
L1 |
| 4-PMRTD-7SM |
-400-3TST |
4M5RT4 |
1.12 |
1/4 |
0.19 |
9/16 |
0.70 |
7/16-20 |
1.95 |
0.60 |
9/16 |
2.24 |
| 6-PMRTD-9SM |
-600-3TST |
6M5RT6 |
1.27 |
3/8 |
0.28 |
5/8 |
0.76 |
9/16-18 |
2.24 |
0.66 |
11/16 |
2.53 |
| 8-PMRTD-12SM |
-810-3TST |
8M5RT8 |
1.49 |
1/2 |
0.41 |
15/16 |
0.86 |
3/4-16 |
2.57 |
0.90 |
7/8 |
2.97 |
| 12-PMRTD-17SM |
-1210-3TST |
12M5RT12 |
1.92 |
3/4 |
0.62 |
1-1/16 |
0.86 |
1-1/16-12 |
3.15 |
0.96 |
1-1/8 |
3.55 |
| 16-PMRTD-21SM |
-1610-3TST |
16M5RT16 |
2.11 |
1 |
0.88 |
1-3/8 |
1.04 |
1-5/16-12 |
3.62 |
1.23 |
1-1/2 |
4.10 |
|
| |
| Note : |
 |
The E dimension is the minimum opening & fitting of this group may be back drilling to larger id at pipe thread or straight thread end. |
|
Dimension l1,c,d in shown in the finger-tight position. |
|
Dimensions are for reference only and are subject to change |
|
Sae/ms (unf) thread as per asmeb1.1. |
| |
All part numbers are proprietary of their respective owners |
|
|
